How to Automate Pump Stations
A technical guide to water management: VFDs, Protection Logic, and Web SCADA.
1. The Challenge: Energy & Wear
Pumping water is energy-intensive. Running pumps at 100% speed 24/7 wastes enormous amounts of power. Furthermore, abnormal conditions like dry-runs can destroy a pump in minutes. Smart automation solves both problems.
Controlling pump speed based on actual demand typically saves 20–40% on electricity.
Automatic PLC logic stops pumps instantly if flow drops, preventing catastrophic failures.
2. Operator Interface: Remote SCADA
Instead of driving to the pump station to check gauges, operators need a centralized dashboard. A Browser-based Web SCADA allows you to monitor pressure, flow, and VFD status from any PC or smartphone.
Below is our modern Node-RED interface designed specifically for remote pump station control.

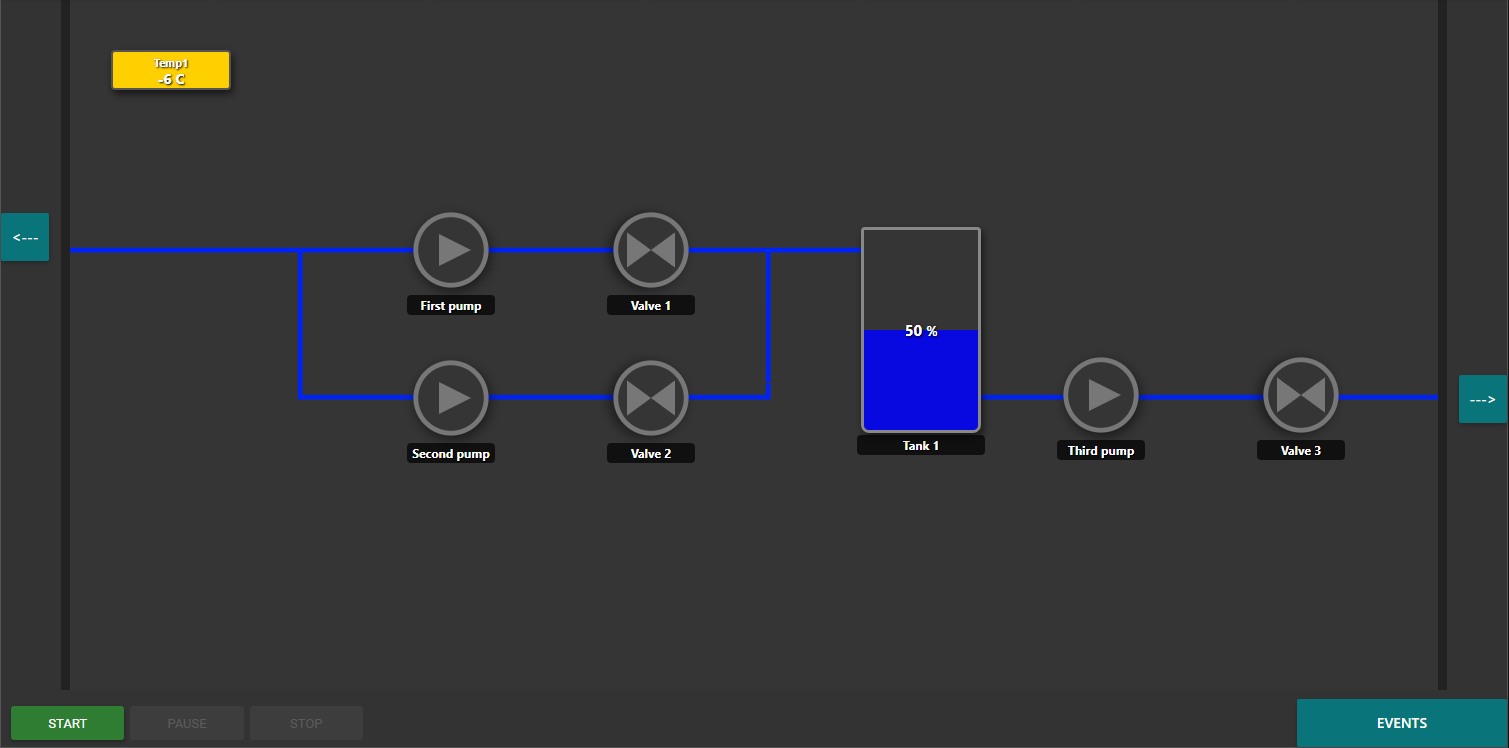

Web-based Pump Station Dashboard (Pressure, Tanks, and VFD status)
3. Event Logging & Predictive Maintenance
Without historical data, maintenance is reactive — you fix things after they break. A dedicated Event System tracks every start, stop, and alarm (like cavitation or overload).
By balancing run hours across multiple pumps (Lead/Lag rotation) and analyzing logs, you can extend equipment life by 30–50%.

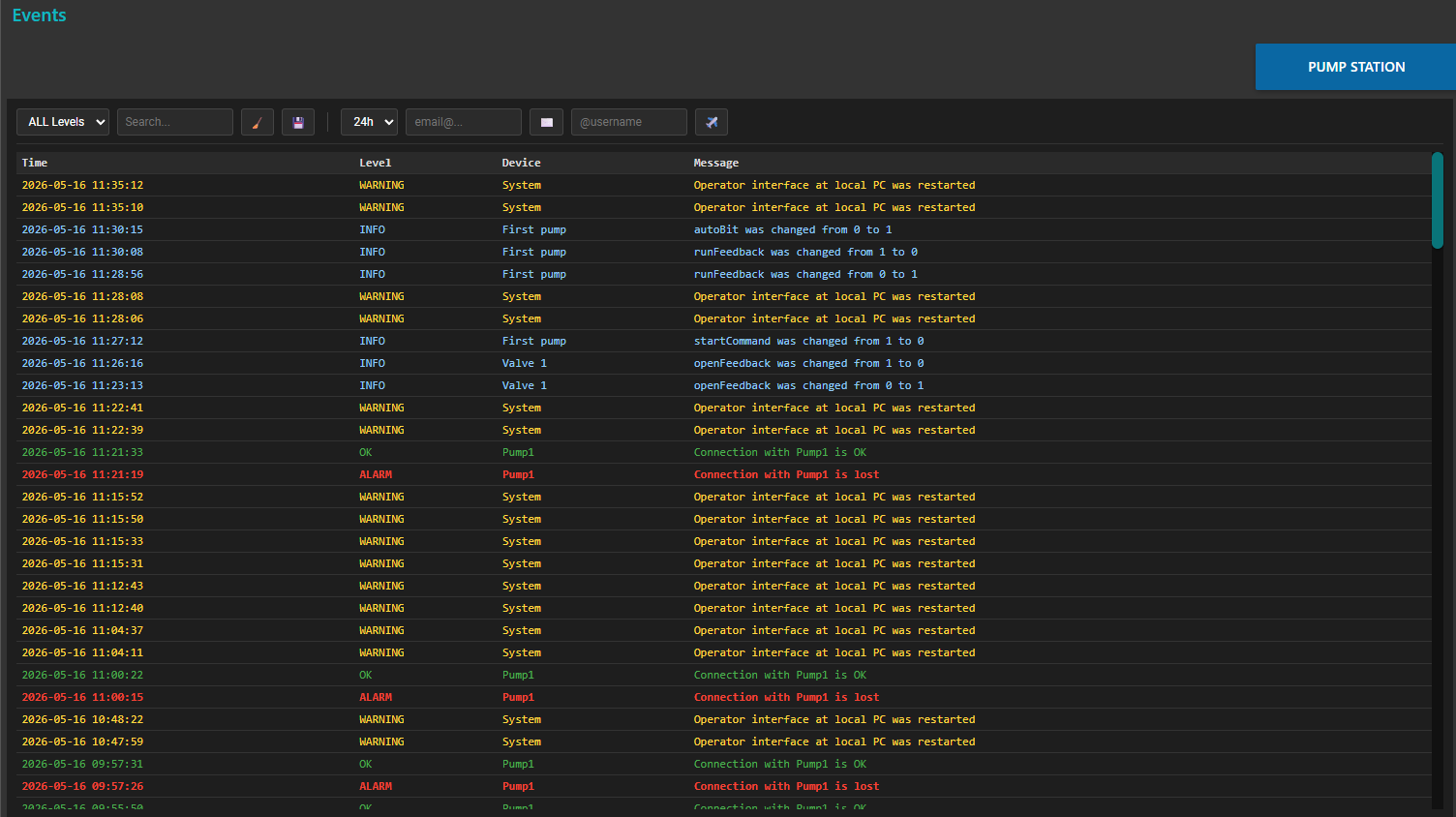

Event Records Database: Tracking Alarms and System Changes
(Runs directly in your browser, no installation required)
🚀 Ready-to-Use SCADA Templates
Building a beautiful, responsive pump control UI from scratch takes weeks of design and coding. Save time by deploying our ready-made Node-RED flows directly to your controller or IPC.
- Limit: 1 Pump, 1 Valve, 1 Tank
- Basic Node-RED UI
- Deployment Guide PDF
- Excel Signal Template
- Unlimited Elements
- Event History (SQLite)
- Unlimited Pumps, Valves, Tanks
- Full Remote Control Logic
- Modbus Integration Ready
- Deployment Guide & Wiring
- Commercial Use Allowed
- Event History (SQLite)
- Everything in Professional
- Event Records System
- SQLite Database Integration
- CSV Export Functionality
- Advanced Alarm Logging
- Priority Email Support
🎬 Deployment Tutorials
See how fast it is to deploy and configure our templates in Node-RED.
Deploying Starter & Pro Versions
Deploying Enterprise (Event Records)
Need Help or Custom Development?
Do you need help connecting these flows to your local PLCs or VFDs? Or need a fully custom multi-station remote monitoring system? Drop us an email.
